IoT Wireless Datalogger for 3 current inputs 0-20mA and 1 two-state input, with built-in 4G modem and Flat Rate SIM Card

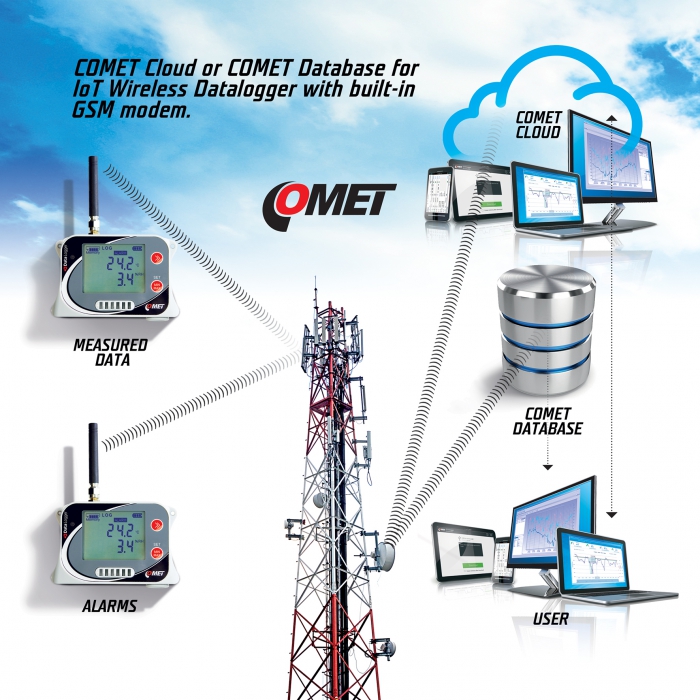

IoT Wireless Datalogger kit with built-in GSM modem and Flat Rate SIM Card allows the instant connection to the COMET Cloud.
IoT Datalogger is designed to record 3 current inputs and 1 binary input. In case of exceeded set limits e-mail is sent from the COMET Cloud.
Alarms are also indicated locally by LED, LCD and acoustically by built-in beeper.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via included USB-C cable.
GSM recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
-
Art nrU6841Gsim
-
Garanti3 År
Tekniska specifikationer
Mätvärde
CURRENT INPUT
BINARY INPUT
„H“ level input voltage:> 2 V;
Minimum voltage applicable:0 V;
Maximum voltage applicable:+30 V DC
Contact resistance in the „switched-off“ state:> 2 MOhm;
Contact voltage in the „switched-off“ state:ca 3 V;
Minimum state duration necessary for latching the state:1s
GSM MODEM PARAMETERS
LTE FDD B1/B3/B5/B7/B8/B20
GENERAL TECHNICAL DATA
cyclic - after filling memory oldest data is overwritten by new
Tillbehör
Nätadapter 230Vac/5Vdc/2.1A, EU
Nätadapter 230Vac/5Vdc/2.1A, UK
Nätadapter 230Vac/5Vdc/2.1A, US
Accupack A8205 for dataloggers "U"
USB-C cable, 1 meter
Vägghållare för datalogger - kopie
Magnethållare för Datalogger
COMET Database
COMET Cloud
COMET Vision - Programvara för Comet Dataloggrar och Multiloggrar
Database Viewer för Comet Database
Spänningsvakt AC SP008
IoT ready Flat Rate SIM Card
Software
Comet Vision Software (2.2.8550.31490 dbapi 21.0)
Comet Database One Click Installer (21.0-I)
Conversions - application for recalculation of values
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Safety Information
Manual for Calibration (accuracy verification) and Adjustment for Dataloggers Uxxxx(M)
Declaration of Conformity
Catalogs
CATALOG - Dataloggers
