Datalogger for external CO2 probe up to 50.000 ppm with built-in atmospheric pressure sensor

Battery powered datalogger with internal atmospheric pressure sensor and for external CO2 probe up to 10 000ppm or 50 000ppm. In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.

The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.

Recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

  • Art nr
    U2422
  • Garanti
    3 År

Tekniska specifikationer

Mätvärde

Beräknade värden (daggpunkt…)
CO2
Barometertryck

CO2 SENSOR

Measuring range 0 to 10 000 ppm
Accuracy 100 ppm + 5% of the measured value at 23 °C a 1 013 hPa
Measuring range 0 to 50 000 ppm
Accuracy ±(1,5 % from full scale +2% from the measured value)
Resolution 1 ppm
External probe cable length CO2 1, 2 or 4 meters

ATMOSPHERIC PRESSURE SENSOR SENSOR

Measuring range 0 to 2000 ppm
Accuracy ±(50ppm +2% from reading) at 25°C and 1013hPa
Resolution 1 ppm

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C
Channels internal sensor for atmospheric pressure and CO2 sensor with the cable
Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode
Recording interval adjustable from 10 s to 24 h
Display and alarm refresh adjustable 1 s, 10 s, 1 min
Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
Real time clock year, leap year, month, day, hour, minute, second
Power battery SONY LiIon 5200mAh
Protection class IP54
Dimensions 61 x 93 x 53 mm
Weight (including batteries) approx. 260 g
Warranty 3 years

Tillbehör

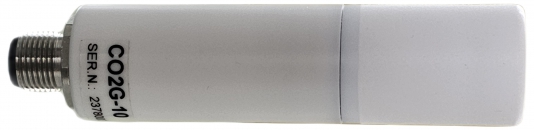

External CO2 sensors

CO2 external probe, range 0-10.000ppm, ELKA connector, without cable

CO2 external probe, range 0-10.000ppm, ELKA connector, without cable

Art nr SN220
CO2 external probe, range 0-50.000ppm, ELKA connector, without cable

CO2 external probe, range 0-50.000ppm, ELKA connector, without cable

Art nr SN253
Extension cable for CO2 probe, ELKA/ELKA connector, cable 1 meter

Extension cable for CO2 probe, ELKA/ELKA connector, cable 1 meter

Art nr UWP001
Extension cable for CO2 probe, ELKA/ELKA connector, cable 2 meters

Extension cable for CO2 probe, ELKA/ELKA connector, cable 2 meters

Art nr UWP001-2
Extension cable for CO2 probe, ELKA/ELKA connector, cable 4 meters

Extension cable for CO2 probe, ELKA/ELKA connector, cable 4 meters

Art nr UWP001-4

Other accessories

Självhäftande kardborrfäste

Självhäftande kardborrfäste

Art nr MD036
Magnethållare för Datalogger

Magnethållare för Datalogger

Art nr LP103
Vägghållare för datalogger - kopie

Vägghållare för datalogger - kopie

Art nr LP100
Adapter for CO2 adjustment and calibration of dataloggers COMET

Adapter for CO2 adjustment and calibration of dataloggers COMET

Art nr LP104
Nätadapter 230Vac/5Vdc/2.1A

Nätadapter 230Vac/5Vdc/2.1A

Art nr A1879
USB-C cable, 1 meter

USB-C cable, 1 meter

Art nr MP053
SILEX - USB Device server for communication with COMET dataloggers via Ethernet or Wi-Fi

SILEX - USB Device server for communication with COMET dataloggers via Ethernet or Wi-Fi

Art nr Silex
Accupack A8205 for dataloggers "U"

Accupack A8205 for dataloggers "U"

Art nr A8205

Monitoring Software

COMET Vision - Programvara för Comet Dataloggrar och Multiloggrar

COMET Vision - Programvara för Comet Dataloggrar och Multiloggrar

Art nr CV
Comet Database

Comet Database

Art nr CDB

Software

download-icon Comet Vision Software (2.1.7508.16081 dbapi 19.0)
15.10 MB
download-icon Comet Database One Click Installer (19.0-III)
324.96 MB
download-icon Conversions - application for recalculation of values
694.50 KB

Manuals

download-icon Instruction Manual
2.59 MB
download-icon Manual for Calibration (accuracy verification) and Adjustment for Dataloggers Uxxxx(M)
427.80 KB
download-icon Quick Start Manual
1,023.91 KB

Catalogs

download-icon CATALOG - Dataloggers
3.68 MB
