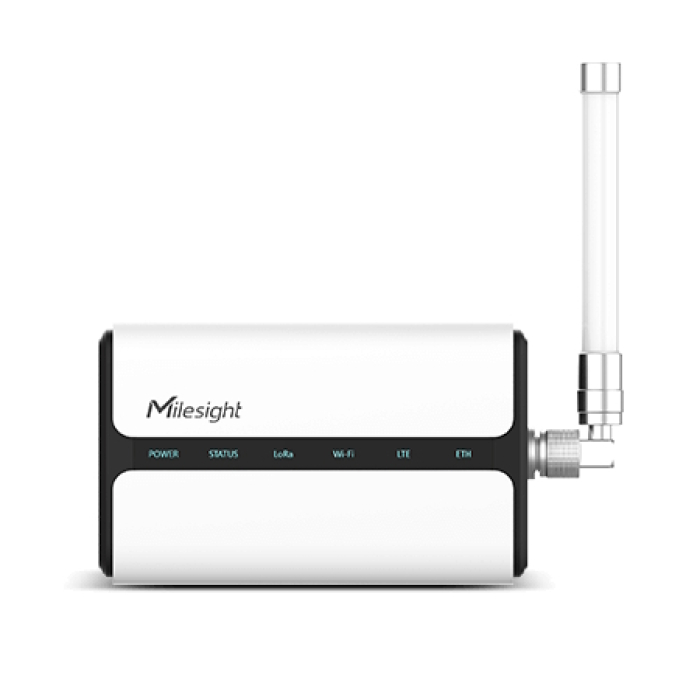

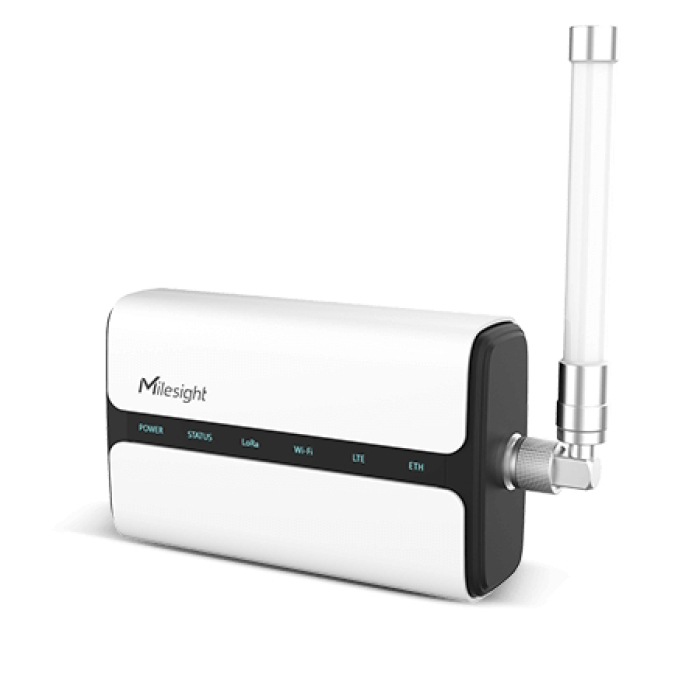

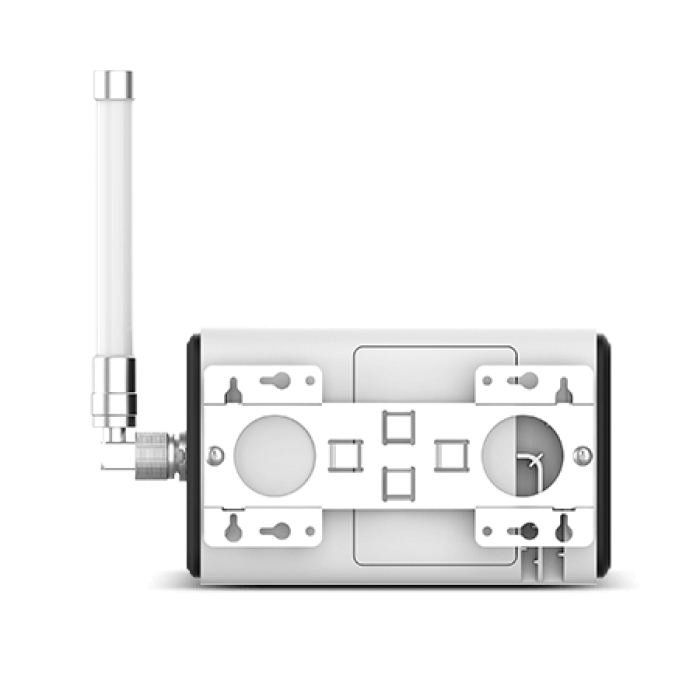

LoRaWAN® Gateway, Milesight UG65
The gateway serves as an access point for the local LoRaWAN® network and is designed to connect the COMET Wx9xx series of wireless sensors to the COMET Cloud.
After installation, it immediately begins receiving and sending data messages to and from the LoRaWAN® network via its antenna.
This third-party product is supplied with all the original accessories required for power supply and installation.
-
Art nrSP043
Tekniska specifikationer
GENERAL PARAMETERS
LoRaWAN® network frequency band
EU863-870
Maximum power consumption
4.2 W
Ethernet
10/100/1000 Mbps
LoRa antenna
External, directly on the connector
Modem
LTE, 4G (miniSIM slot)
POWER
Input voltage of DC connector
9-24 V
PoE in input Voltage
PD type, according to IEEE 802.3 af
GENERAL TECHNICAL DATA
Operating temperature
-40°C to +70°C
Protection class
IP65
Dimensions
180 x 110 x 56.5 mm (antenna length 190 mm)
Tillbehör
Manuals
Quick Start Manual
Catalogs
CATALOG - IoT Sensors powered by LoRa
Catalogue Sheets - COMET LoRa Sensors
